BOLDATA® VFX 751A-i (SYS-751A-I)
BOLData® VFX 751A-i
The VFX 751A-i Series Workstations provide the best platform for your VFX needs and are capable of rendering incredible 3D models and animations with whisper quiet operation.
Key Features
- Dual 5th/4th Gen Intel Xeon Scalable Processors
- Up to 2TB ECC DDR5, 16 x RDIMM
- Up to 2 double-width GPUs
- Tower/5U Rackmount Chassis, 4 x 3.5" / 2 x 2.5" internal drive bays (opt.)
Configured price $4,810.00
Intel® Xeon® Processors
Workload-Optimized Performance and Power Efficiency Gains
Get more compute and faster memory at the same power envelope as our previous generation, plus outsized performance and TCO in AI, HPC, database, networking, and storage.
Intel Xeon processors are optimized to deliver new levels of performance across the greatest range of workloads, while offering improved efficiency and lower power consumption.
Reduce Costs With Improved Performance Per Dollar In The Cloud With Intel Xeon Processors
With their superior performance for data-intensive operations, advanced memory capabilities, and integrated security features, Intel Xeon processors provide a robust platform for enterprises to navigate the complexities of the modern cloud environment.
Optimize Your Data Center With Intel Xeon Processors For TCO Savings
Consolidate workloads to fewer servers and repurpose space and power for AI-ready servers at a lower total cost without compromising performance. Make the best use of your space, power, and budget.
Discover How To Best Refresh And Scale Your Data Center
Intel® Xeon® Processor Advisor Suite can help determine the best solutions for your workload whether it's refreshing existing infrastructure or building a new data center. Get instant recommendations and optimize based on TCO, sustainability and power.
DDR5—Packing Power and Performance into a New Generation
Increased Banks and Burst Length
DDR5 doubles the banks from 16 to 32. This allows for more pages to be open at a time, increasing efficiency. Also doubled is the minimum burst length to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.
Improved Refreshes
DDR5 adds a new command called SAME-BANK Refresh, which allows a refresh of just one bank per bank group, versus all banks. When compared to DDR4, this command allows DDR5 to further improve on performance and efficiency.
Decision Feedback Equalization
DDR5 utilizes Decision Feedback Equalization (DFE) to provide stable, reliable signal integrity on the module, required for high bandwidth.
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T; Up to 320MB Cache per CPU
Supports up to 350W TDP CPUs (Air Cooled)
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
SATA: SATA (6Gbps) via Intel® C741; RAID 0/1/5/10 support

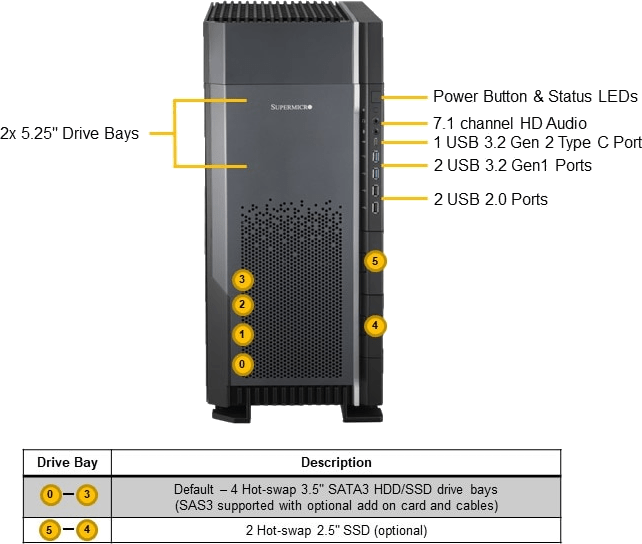

Drive Bays Configuration
Default: Total 4 bays
4 front fixed 3.5" NVMe/SAS*/SATA drive bays
Option A: Total 6 bays
4 internal fixed 3.5" NVMe/SATA drive bays
2 front fixed 2.5" SATA drive bays
(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
2 M.2 NVMe slots (M-key 2280/22110)
2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1)
Form Factor: Tower or 5U Rackmount

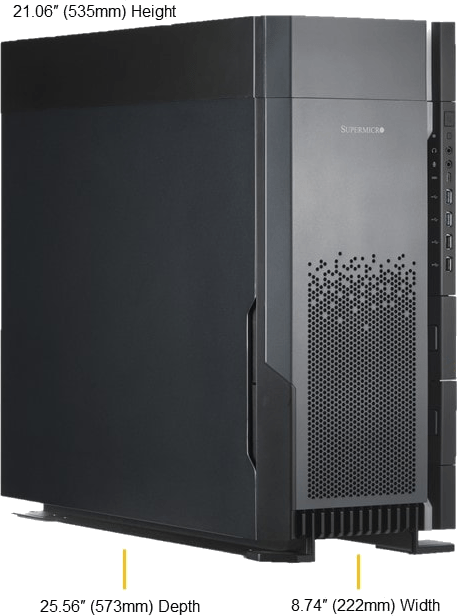

Weight and Dimensions:
Height: 21.1" (536 mm)
Width: 8.7" (221 mm)
Depth: 22.6" (574 mm)
Package: 27.6" (H) x 14.6" (W) x 28" (D)
Gross Weight: 59.5 lbs (27 kg)
Net Weight: 56.2 lbs (25.5 kg)

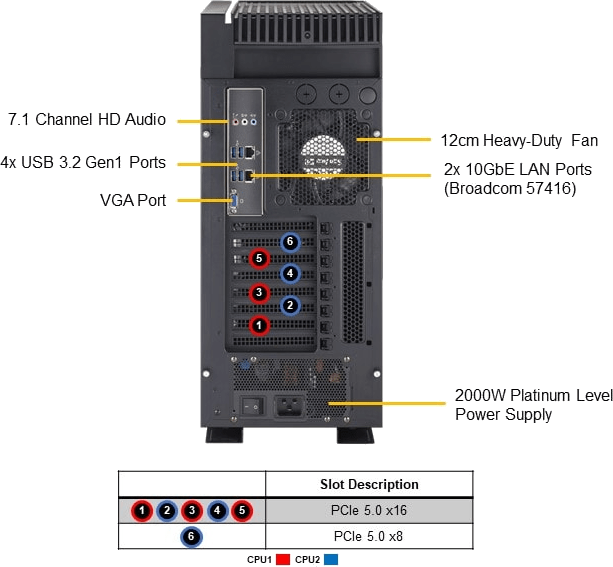

Default
5 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x8 FHHL slot
LAN
2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1)
USB
2 USB 2.0 Type-A ports(front)
2 USB 3.2 Gen1 Type-A ports(front)
1 USB 3.2 Gen2 Type-C port(Front)
1 USB 3.2 Gen2 Type-A port(Header)
4 USB 3.2 Gen1 Type-A ports(Rear)
Video
1 VGA port
Audio
7.1 HD Audio
Line Out
Mic in
TPM
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Windows® 11 Professional Edition
