BOLDATA® Ultrastar Data60 (SYS-XSJ-4U60)

BOLData® Ultrastar Data60

The Ultrastar Data60 is a key element of next‑generation disaggregated storage and software-defined storage (SDS) systems, delivering extreme density and the flexibility to balance performance with cost.

Key Features

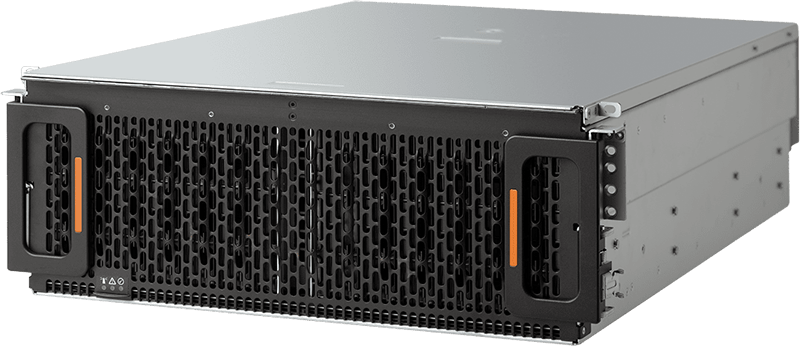

4U Rackmount JBOD with 60 SAS/SATA WD HDD
JBOD powered by WD Hard Drives!

Configured price $22,078.00

Customize

Request a Quote

features
specifications

RAID Solutions for JBOD and JBOF

Pro performance

Get the performance and protection you need for data-intensive creative workflows.

Production power

RAID solutions can be configured for the most rigorous uses, such as time-sensitive, data-sensitive post-production workflows.

Cloud-friendly

Cloud-ready RAID storage can be ideal for both business and home users that want to access their data from anywhere.

Fault tolerant

RAID can deliver high data protection and redundancy whenever uptime and availability are critical needs.

JBOD & JBOF: Flexible Customizability and Expansion

JBOD and JBOF, or Just a Bunch of Disks and Just a Bunch of Flash, respectively, open up additional paths to flexibility with a RAID storage device.

While arrays using numbered RAID types generally require reformatting to add new drives, JBOD and JBOF allow users to expand or swap drives without reformatting.

JBOD can do this because each disk acts independently, and each disk is seen as its own volume. This also means the risk of data loss is contained to one drive rather than the entire array.

With Spanning, data is only kept within each disk, but the system make all disks appear as one larger "logical" volume—almost like they're one big drive. Spanning is more flexible than RAID and simpler to use than JBOD, but it can be more complex than JBOD if you want to move drives.

Drive Bays Drive Bays:

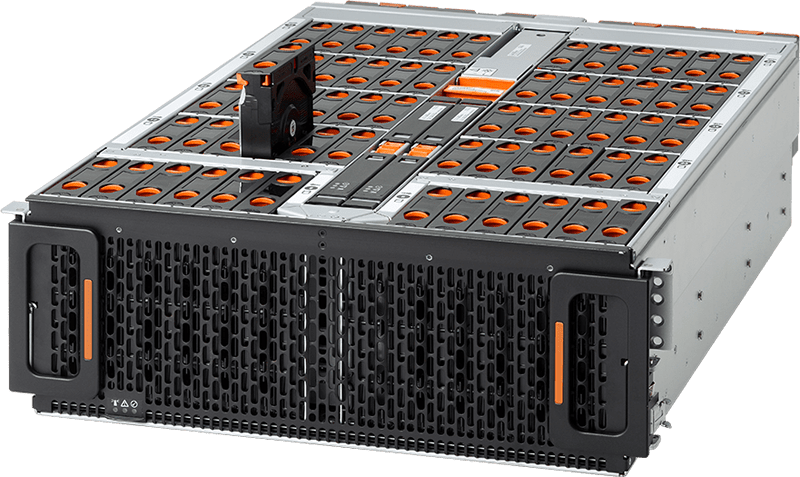

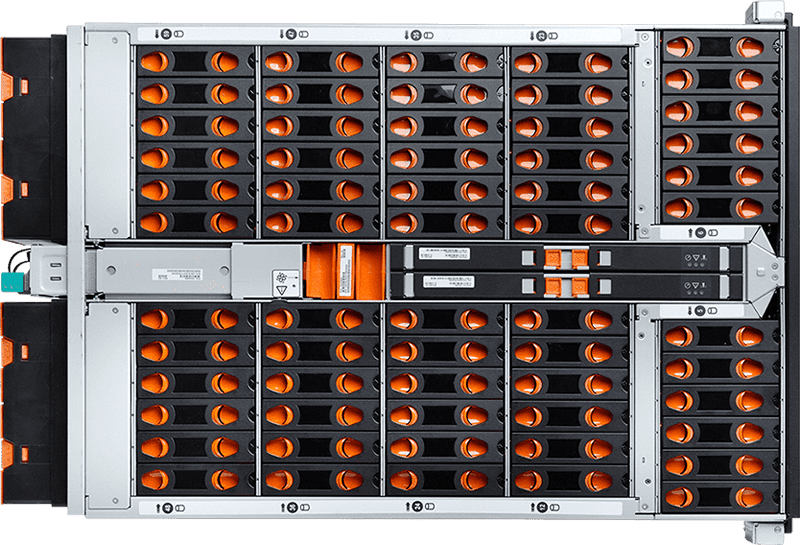

60 x 3.5" top-load, hot-swap SAS/SATA drive bays supporting SAS3 or SATA3 HDDs
12Gb/s SAS
6Gb/s SATA

Chassis Chassis:

Weight and Dimensions
Height: 6.87"
Width: 17.6"
Depth: 28.03"
Net Weight: 177.85 lbs (80.67kg)

Power and Cooling
Platinum: Dual 200-240V AC, 1600W, 1800W
Titanium: Dual 200-240V AC, 1600W

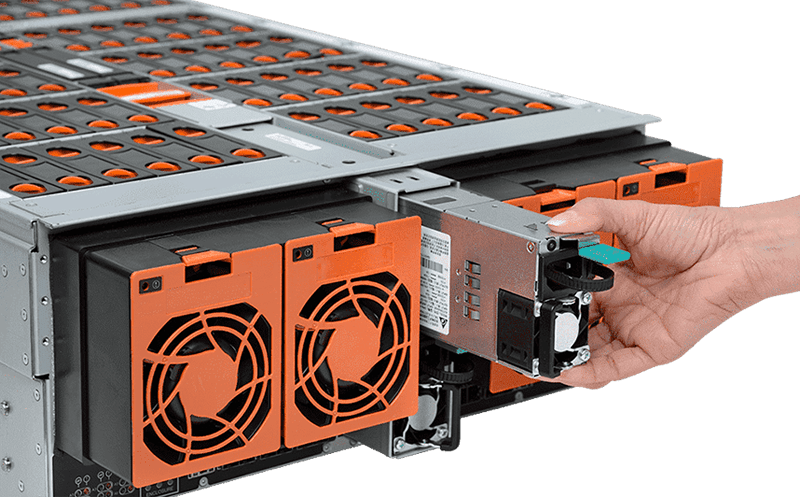

Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 IO module fan
Dual PSUs with built-in fans

Backplane
Dual-port SAS for high availability or single-port SATA for low cost

Connections Connections:

Up to 12 x 12Gb/s SAS-3 host connections
Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM

Management Management:

SCSI Enclosure Services
Redfish (out of band, via RJ45)
