BOLDATA® XSJ-947SE1C (CSE-947SE1C-R1K66JBOD)

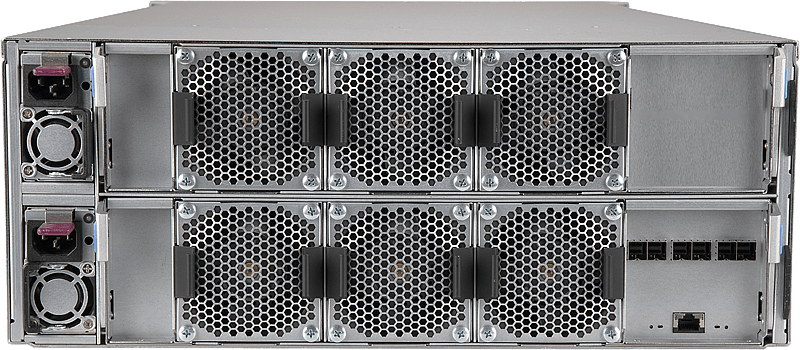

Computer
Computer

BOLData® XSJ-947SE1C

Bold Data brings affordability, reliability and serviceability to Data Center storage by integrating drive enclosures into a single intelligent storage solution.

Key Features

  • 4U Rackmount, 60 x 3.5" top-loading drive bays
  • Redundant 1600W Power Suuplies

Configured price $10,430.00

Customize
Request a Quote

RAID Solutions for JBOD and JBOF

WD JBOD
Pro performance
Pro performance

Get the performance and protection you need for data-intensive creative workflows.

Production power
Production power

RAID solutions can be configured for the most rigorous uses, such as time-sensitive, data-sensitive post-production workflows.

Cloud-friendly
Cloud-friendly

Cloud-ready RAID storage can be ideal for both business and home users that want to access their data from anywhere.

Fault tolerant
Fault tolerant

RAID can deliver high data protection and redundancy whenever uptime and availability are critical needs.

JBOD & JBOF: Flexible Customizability and Expansion

JBOD and JBOF, or Just a Bunch of Disks and Just a Bunch of Flash, respectively, open up additional paths to flexibility with a RAID storage device.

While arrays using numbered RAID types generally require reformatting to add new drives, JBOD and JBOF allow users to expand or swap drives without reformatting.

JBOD can do this because each disk acts independently, and each disk is seen as its own volume. This also means the risk of data loss is contained to one drive rather than the entire array.

With Spanning, data is only kept within each disk, but the system make all disks appear as one larger "logical" volume—almost like they're one big drive. Spanning is more flexible than RAID and simpler to use than JBOD, but it can be more complex than JBOD if you want to move drives.

JBOD - person making data calculation
Drive Bays Drive Bays:

60 x 3.5"/2.5" hot-swap SAS/SATA drive bay with SES3

Chassis Chassis:

Weight and Dimensions
Height: 6.96" (177 mm)
Width: 17.6" (447 mm)
Depth: 32" (813 mm)
Gross Weight: 170 lbs (77.11 kg)
Net Weight: 107 lbs (48.53 kg)
Palletized Packing (W x H x L): 35.82" (805 mm) x 29.92" (755 mm) x 53.15" (1135 mm)

Power and Cooling
1600W redundant power supply, Platinum level with PMBus & I2C

Backplane
Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS
Adapter board between Expander and HDD BPN for CSE-947H,RoHS
IPMI control board for CSE-947H top-load 60/90-bay JBOD
15-Port HDD Backplane for CSE-947H 60/90-bay top load chassis/server.,RoHS
JBOD I/O board for CSE-947H top-load 60/90-bay JBOD unit
SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS

Connections Connections:

6x SAS3.0 IO ports ( MiniSAS HD) per node
Dedicated IPMI RJ45 management port

Management Management:

Redfish OOB management protocol support
