BOLDATA® XSJ-826BE1C (CSE-826BE1C-R609JBOD)

Computer
Computer

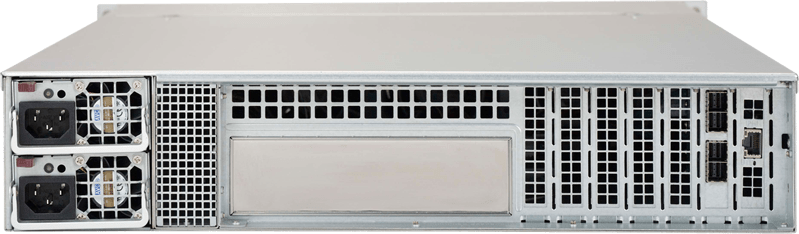

BOLData® XSJ-826BE1C

Bold Data brings affordability, reliability and serviceability to Data Center storage by integrating drive enclosures into a single intelligent storage solution.

Key Features

  • 2U Rackmount, 12 x 3.5" drive bays
  • Redundant 600W Power Suuplies

Configured price $1,786.00

Customize
Request a Quote

RAID Solutions for JBOD and JBOF

WD JBOD
Pro performance
Pro performance

Get the performance and protection you need for data-intensive creative workflows.

Production power
Production power

RAID solutions can be configured for the most rigorous uses, such as time-sensitive, data-sensitive post-production workflows.

Cloud-friendly
Cloud-friendly

Cloud-ready RAID storage can be ideal for both business and home users that want to access their data from anywhere.

Fault tolerant
Fault tolerant

RAID can deliver high data protection and redundancy whenever uptime and availability are critical needs.

JBOD & JBOF: Flexible Customizability and Expansion

JBOD and JBOF, or Just a Bunch of Disks and Just a Bunch of Flash, respectively, open up additional paths to flexibility with a RAID storage device.

While arrays using numbered RAID types generally require reformatting to add new drives, JBOD and JBOF allow users to expand or swap drives without reformatting.

JBOD can do this because each disk acts independently, and each disk is seen as its own volume. This also means the risk of data loss is contained to one drive rather than the entire array.

With Spanning, data is only kept within each disk, but the system make all disks appear as one larger "logical" volume—almost like they're one big drive. Spanning is more flexible than RAID and simpler to use than JBOD, but it can be more complex than JBOD if you want to move drives.

JBOD - person making data calculation
Drive Bays Drive Bays:

12 x 3.5" hot-swappable HDDs bays

Chassis Chassis:

Weight and Dimensions
Height: 3.5" (89 mm)
Width: 17.2" (437 mm)
Depth: 25.5" (647 mm)
Gross Weight: 55 lbs (24.95 kg)
Net Weight : 29 lbs (13.15 kg)
Packaging (W x H x L): 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)

Power and Cooling
600W / 650W 1U Redundant Power Supply
3x 80x38mm hot-swap cooling fan(s)

Backplane
12-Port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD

Connections Connections:

4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

Management Management:

1x IPMI port for Remote System Power on/off and system monitoring
