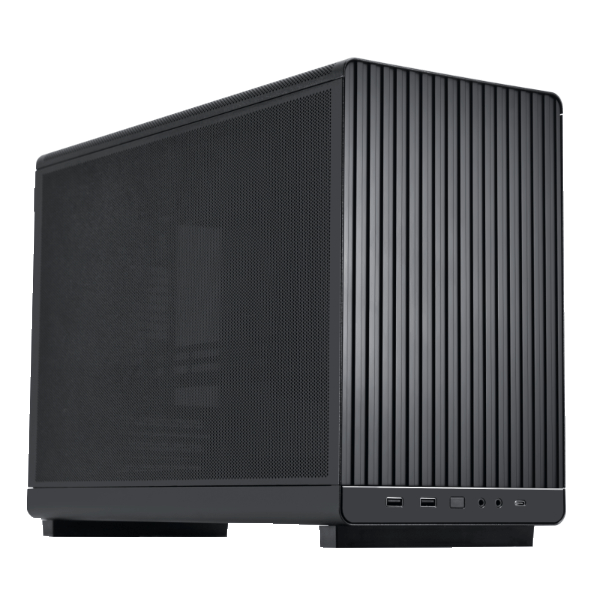

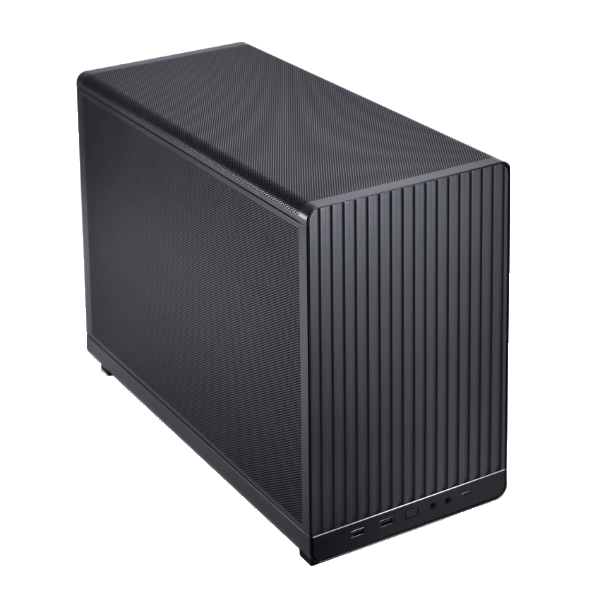

BOLDATA® VFX MFF Z890-MW (SYS-VFX-MFF-Z890-MW)
BOLData® VFX MFF Z890-MW
The VFX MFF Z890-MW Series is an MFF (Micro Form Factor) platform based on performance, visual experience, and energy efficiency. It enables affordable innovation and massive performance headroom in an efficient design consumers can feel good about.
Key Features
- Intel Core™ Ultra Series 2
- Max. 256GB DDR5, 4 x UDIMM
- MFF Chassis, 1 x 3.5" / 3 x 2.5" drive bays
Configured price $1,886.00
Intel® Core™ Ultra Processors
The AI PC revolution is here
Intel® Core™ Ultra processors (Series 2) are built to make you a leader in AI. From supercharged productivity to heightened security and speed, Intel’s AI is the key to next-level processor performance.
Enthusiast Level Performance
Unleash your best self with up to 24 Core 3D Performance architecture to help you play, create, and work.
Robust Graphics
Intel Graphics equips you with a modern feature set delivering greater everyday performance, advanced media, and expansive display capabilities.
Maximize Your Peripheral & Connectivity Experience
Be connected like never before with the latest connectivity and I/O with features like Thunderboltâ„¢ technology.
DDR5—Packing Power and Performance into a New Generation
Increased Banks and Burst Length
DDR5 doubles the banks from 16 to 32. This allows for more pages to be open at a time, increasing efficiency. Also doubled is the minimum burst length to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.
Improved Refreshes
DDR5 adds a new command called SAME-BANK Refresh, which allows a refresh of just one bank per bank group, versus all banks. When compared to DDR4, this command allows DDR5 to further improve on performance and efficiency.
Decision Feedback Equalization
DDR5 utilizes Decision Feedback Equalization (DFE) to provide stable, reliable signal integrity on the module, required for high bandwidth.
Windows 11
Easier to use
Explore the new Windows 11 features that help you get things done in a fast, fun, and easy way.
Copilot in Windows 11
New to Windows 11, Copilot in Windows is your AI-powered intelligent assistant, here to help you find the relevant information and ideas you need to power your own ingenuity.
Accessibility features
Navigate using voice recognition, see what's being said with live captions, or have on-screen text read aloud by a narrator in a natural, human voice. Windows 11 makes it easy for everyone to use their PC.
Windows Backup
Feel at home instantly on your new PC. With Windows Backup, you can set things up to your liking by easily transferring some of your favorite settings, files, and apps from your old PC.
- Windows® 11 Professional Edition
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
1 x M.2 PCIe 4.0 x4 slot (M-key 2280)
1 x M.2 PCIe 5.0 x4 slot (M-key 2280/22110)
4 SATA (6Gbps) via Intel® Z890 Express; RAID 0/1/5/10 support
Processor
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Max Memory (1DPC): Up to 256GB 5600MT/s non-ECC DDR5 UDIMM
MFF Chassis (MIcro Form Factor) mATX, Mini-ITX
Internal Drive Bays
1 x 3.5"
3 x 2.5"

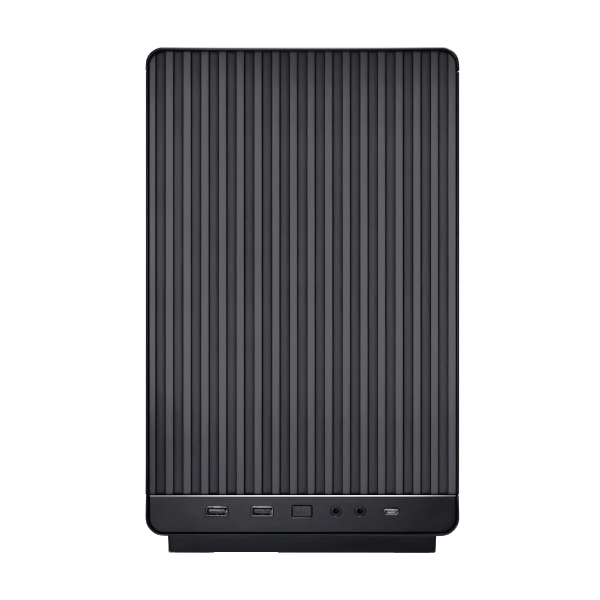

Front Ports
2 x USB 3.0 TYPE-A
1 x USB 3.1 TYPE-C
I/O Expansion Slots
4
Compatibility
Maximum Graphics Card Length / Height: 415 mm / 165 mm
Thermal Solution
Top: 3 x 120mm
Side: 3 x 120mm or 2 x 140mm
Bottom: 3 x 120mm
Rear: 1 x 120mm
Radiator Support
Top: 1 x 360/240mm
Side: 1 x 360/280/240mm
Bottom: 1 x 240mm (360mm with fan at the bottom)
Dimensions
(D) 443mm x (W) 194mm x (H) 321.5mm
(D) 443mm x (W) 194mm x (H) 306mm(w/o feet)
Ethernet
Single LAN with 1Gb Intel® Ethernet PHY I219-V
1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4) port(s)
1 Display Port port(s)
1 HDMI 2.1 (8K@60MHz) port(s)
Expansion Slots
1 PCIe 4.0 x4 slot
1 PCIe 5.0 x16 (in x16) slot
1 PCIe 4.0 x1 slot
USB (Total 10 ports)
2 USB 2.0 port(s) (header)
2 USB 2.0 Type-A port(s) (rear)
2 USB 3.2 Gen 1 port(s) (Header)
2 USB 3.2 Gen 1 Type-A port(s) (Rear)
1 USB 3.2 Gen 2x2 Type-C port(s) (Header)
1 USB 4.0 Type-C port(s) (Rear)
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
7x 4-pin fan headers (up to 7 fans)
5 fans with tachometer status monitoring
Fan speed control
Overheat LED indicatio
Miscellaneous
Serial: 1 COM port(s) (header)
Audio: ALC 888S HD Audio
TPM: 1 TPM 2.0 Header
ALC 888S HD Audio
