BOLDATA® VFX FT65-TB5652 (SYS-FT65-TB5652)
BOLData® VFX FT65-TB5652
The VFX FT65-TB5652 delivers high performance and flexibility for demanding workloads, with powerful computing, extensive memory support, and high-speed networking for diverse professional applications.
Key Features
- Dual 5th/4th Gen Intel Xeon Scalable Processors
- Up to 1TB ECC DDR5, 8 x RDIMM
- Up to 2 double-width GPUs
- Tower/4U Chassis, 6 3.5" SATA + 2 NVMe U.2 hot-swap
Configured price $4,463.00
Intel® Xeon® Processors
Workload-Optimized Performance and Power Efficiency Gains
Get more compute and faster memory at the same power envelope as our previous generation, plus outsized performance and TCO in AI, HPC, database, networking, and storage.
Intel Xeon processors are optimized to deliver new levels of performance across the greatest range of workloads, while offering improved efficiency and lower power consumption.
Reduce Costs With Improved Performance Per Dollar In The Cloud With Intel Xeon Processors
With their superior performance for data-intensive operations, advanced memory capabilities, and integrated security features, Intel Xeon processors provide a robust platform for enterprises to navigate the complexities of the modern cloud environment.
Optimize Your Data Center With Intel Xeon Processors For TCO Savings
Consolidate workloads to fewer servers and repurpose space and power for AI-ready servers at a lower total cost without compromising performance. Make the best use of your space, power, and budget.
Discover How To Best Refresh And Scale Your Data Center
Intel® Xeon® Processor Advisor Suite can help determine the best solutions for your workload whether it's refreshing existing infrastructure or building a new data center. Get instant recommendations and optimize based on TCO, sustainability and power.
DDR5—Packing Power and Performance into a New Generation
Increased Banks and Burst Length
DDR5 doubles the banks from 16 to 32. This allows for more pages to be open at a time, increasing efficiency. Also doubled is the minimum burst length to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.
Improved Refreshes
DDR5 adds a new command called SAME-BANK Refresh, which allows a refresh of just one bank per bank group, versus all banks. When compared to DDR4, this command allows DDR5 to further improve on performance and efficiency.
Decision Feedback Equalization
DDR5 utilizes Decision Feedback Equalization (DFE) to provide stable, reliable signal integrity on the module, required for high bandwidth.
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports up to 350W TDP CPUs (Air Cooled)
Slot Count: 8 DIMM slots/8-channel
RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) - 4th Gen.
RDIMM / RDIMM-3DS DDR5 5600 MHz (1DPC) / 4400MHz (2DPC) - 5th Gen.
Up to 1,024GB RDIMM/ 2,048GB 3DS RDIMM DDR5 5600/4800/4400 /*Follow latest Intel DDR5 Memory POR
SATA: SATA (6Gbps) via Intel® C741; RAID 0/1/5/10 support
NVMe: 1 MCIO x8
Drive Bays Configuration
Default: Total 8 bays
2 x 2.5" Hot-Swap NVMe SSDs NVMe drive bays
6 x 3.5" Hot-Swap SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
1 x M.2 NVMe 2280 (by PCIe 3.0 x4)
2 x RJ45 10 GbE LAN ports
1 x GbE port
1 x GbE dedicated for IPMI

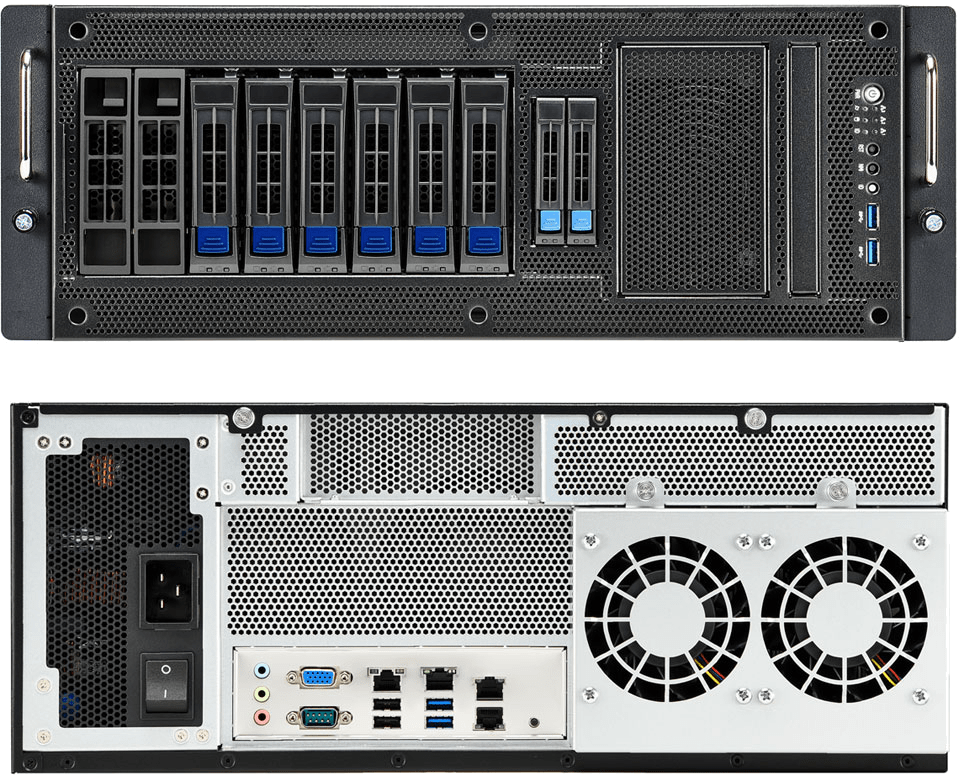

Form Factor: Tower or 4U Rackmount
Weight and Dimensions:
Height: 6.93" (176 mm)
Width: 17.245" (438 mm)
Depth: 25.59" (650 mm)
Default
4 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x8 slot
LAN
2 RJ45 10 GbE LAN ports
1 RJ45 GbE LAN port
1 RJ45 GbE dedicated IPMI LAN port
USB
2 USB 3.2 Gen1 Type-A ports(Rear)
2 USB 2.0 ports (Rear)
Serial
1 DB-9 COM port
Video
1 VGA port
DOM
2 SATA DOM (Disk on Module) ports
Audio
1 2x5-pin header
TPM
TPM 2.0 (optional)
Windows® 11 Professional Edition
