BOLDATA® VFX 532AW-C (SYS-532AW-C)
BOLData® VFX 532AW-C
The VFX 532AW-C Series Workstations provide the best platform for your VFX needs and are capable of rendering incredible 3D models and animations with whisper quiet operation.
Key Features
- Intel® Core™ Ultra 9/7/5 Processors up to 125W
- Up to 192GB ECC/non-ECC DDR5, 4 x UDIMM
- Up to 1 double-width or triple-width GPU
- Mid-Tower Chassis, 2 x 3.5" / 4 x 2.5" internal drive bays
Configured price $2,103.00
Intel® Core™ Ultra Processors
The AI PC revolution is here
Intel® Core™ Ultra processors (Series 2) are built to make you a leader in AI. From supercharged productivity to heightened security and speed, Intel’s AI is the key to next-level processor performance.
Enthusiast Level Performance
Unleash your best self with up to 24 Core 3D Performance architecture to help you play, create, and work.
Robust Graphics
Intel Graphics equips you with a modern feature set delivering greater everyday performance, advanced media, and expansive display capabilities.
Maximize Your Peripheral & Connectivity Experience
Be connected like never before with the latest connectivity and I/O with features like Thunderboltâ„¢ technology.

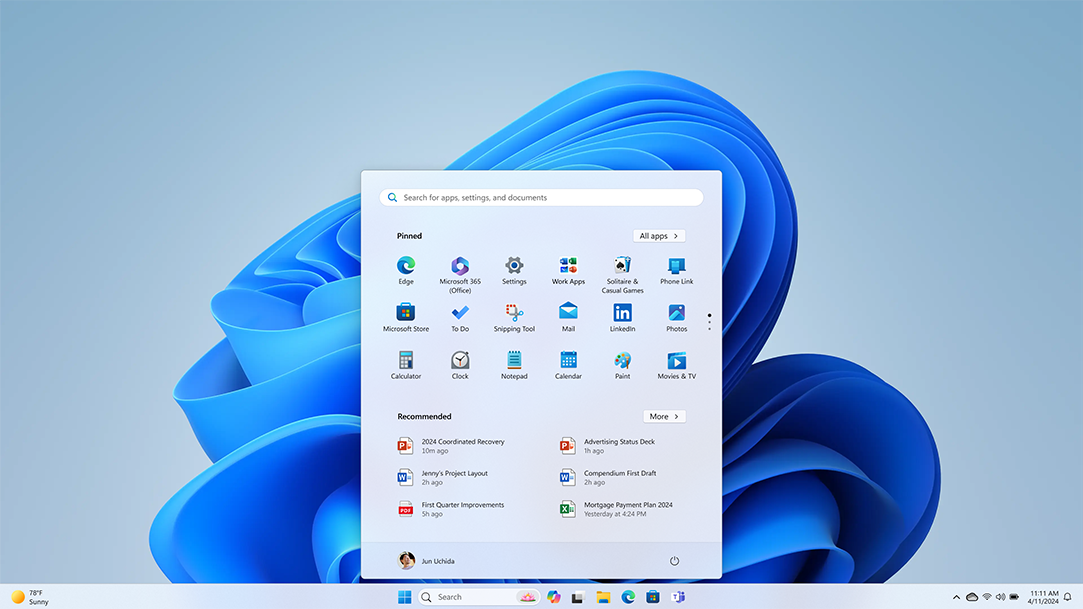

Windows 11
Easier to use
Explore the new Windows 11 features that help you get things done in a fast, fun, and easy way.
Copilot in Windows 11
New to Windows 11, Copilot in Windows is your AI-powered intelligent assistant, here to help you find the relevant information and ideas you need to power your own ingenuity.
Accessibility features
Navigate using voice recognition, see what's being said with live captions, or have on-screen text read aloud by a narrator in a natural, human voice. Windows 11 makes it easy for everyone to use their PC.
Windows Backup
Feel at home instantly on your new PC. With Windows Backup, you can set things up to your liking by easily transferring some of your favorite settings, files, and apps from your old PC.
Single LGA-1851
Intel® Core™ Ultra 9/7/5 (Series 2) processors
Up to 24C/24T; Up to 36MB Cache
Supports up to 125W TDP CPUs (Air Cooled)
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
SATA: SATA (6Gbps) via Intel® W880; RAID 0/1/5/10 support
Drive Bays Configuration
Default: Total 6 bays
2 internal fixed 3.5"/2.5" SATA drive bays
4 internal fixed 2.5" SATA drive bays
M.2
1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default))
1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110(default)/2280)
1 RJ45 1GbE with Intel® I219-LM
1 RJ45 2.5GbE with Intel® I226-LM

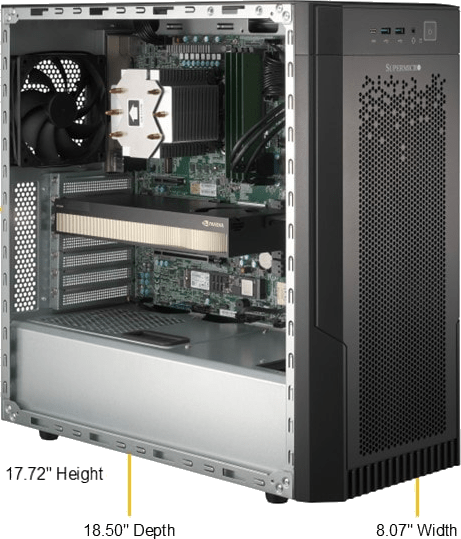

Form Factor: Mid-Tower
Weight and Dimensions:
Height: 17.72" (450 mm)
Width: 8.07" (205 mm)
Depth: 18.5" (470 mm)
Package: 24.29" (H) x 12.8" (W) x 23.23" (D)
Gross Weight: 19.2 lbs (8.7 kg)
Net Weight: 14.1 lbs (6.4 kg)
Default
2 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 4.0 x4 (in x4) FHHL slot
Option A
1 PCIe 5.0 x16 (in x16) FHFL slot
1 PCIe 4.0 x4 (in x4) FHHL slot

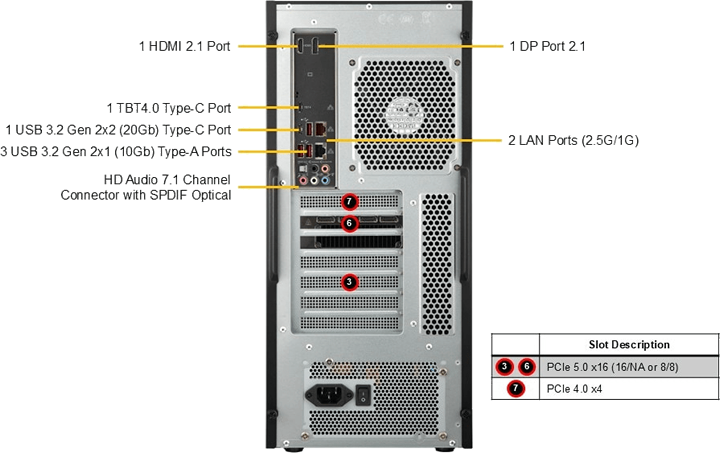

LAN
1 RJ45 1GbE with Intel® I219-LM
1 RJ45 2.5GbE with Intel® I226-LM
USB
2 USB 3.2 Gen1 Type-A ports(front)
3 USB 3.2 Gen2 Type-A ports(Rear)
1 USB 3.2 Gen2 Type-C port(Rear)
1 USB 3.2 Gen2 Type-C port(Front)
1 Thunderbolt™ 4 Type-C port(Rear)
Video
1 HDMI 2.1 port(Rear)
1 DisplayPort 2.1 port(Rear)
Audio
7.1 HD Audio
TPM
1 TPM Onboard TPM & TPM Header
Windows® 11 Professional Edition
Windows® 11 Home
