BOLDATA® VFX 2115HV-TNRT (AS-2115HV-TNRT)
BOLData® VFX 2115HV-TNRT
The VFX 531AW-TC Series Workstations provide the best platform for your VFX needs and are capable of rendering incredible 3D models and animations with whisper quiet operation.
Key Features
- AMD Ryzen™ Threadripper™ PRO 9000WX/7000WX series and Ryzen™ Threadripper™ 9000/7000 series up to 350W TDP Processors
- Up to 2TB ECC DDR5, 4 x RDIMM
- Up to 4 double-width or 8 single-width GPUs
- 2U Chassis, 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Configured price $6,264.00
AMD Ryzen™ Threadripper™ Processors
Processor Solutions for Engineers
Bring Designs to Life and Products to Market in Less Time
AMD Ryzen™ Threadripper™ processors deliver battle-tested performance and capability to enable artists, architects, and engineers with the ability to get more done in less time.
Rendering
Engineering teams often rely on CPU based rendering engines to generate ultra-photorealistic product imagery in order to convey design intent to clients and assist with the creation of marketing materials. If your primary workflow task involves frequent CPU rendering, you should procure a workstation with the most CPU cores that your budget allows.
If you wish to accommodate lightly threaded tasks in your workflow, like 3D modeling and design, you'll want the best balance of high core count and high clock speed.
3D Modeling & Design
Traditional 3D modeling and design tasks are lightly threaded, meaning that they typically make use of just a few cores. A processor with a higher frequency can have a greater impact on performance and productivity if this is the primary task in your workflow.
Generative design is a new method which leverages AI to build optimized designs based on specific constraints. This process is multithreaded and can benefit from workstations with many CPU cores.
Accelerate Your Vision and Advance Demanding Workloads
When deadlines are non-negotiable, professional artists, architects, and engineers need a workstation that excels. AMD Ryzen™ Threadripper™ PRO processors offer a highly expandable platform with unmatched performance, enterprise-class security, and exceptional manageability. Empower your team like never before.
DDR5—Packing Power and Performance into a New Generation
Increased Banks and Burst Length
DDR5 doubles the banks from 16 to 32. This allows for more pages to be open at a time, increasing efficiency. Also doubled is the minimum burst length to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.
Improved Refreshes
DDR5 adds a new command called SAME-BANK Refresh, which allows a refresh of just one bank per bank group, versus all banks. When compared to DDR4, this command allows DDR5 to further improve on performance and efficiency.
Decision Feedback Equalization
DDR5 utilizes Decision Feedback Equalization (DFE) to provide stable, reliable signal integrity on the module, required for high bandwidth.
Windows 11
Easier to use
Explore the new Windows 11 features that help you get things done in a fast, fun, and easy way.
Copilot in Windows 11
New to Windows 11, Copilot in Windows is your AI-powered intelligent assistant, here to help you find the relevant information and ideas you need to power your own ingenuity.
Accessibility features
Navigate using voice recognition, see what's being said with live captions, or have on-screen text read aloud by a narrator in a natural, human voice. Windows 11 makes it easy for everyone to use their PC.
Windows Backup
Feel at home instantly on your new PC. With Windows Backup, you can set things up to your liking by easily transferring some of your favorite settings, files, and apps from your old PC.

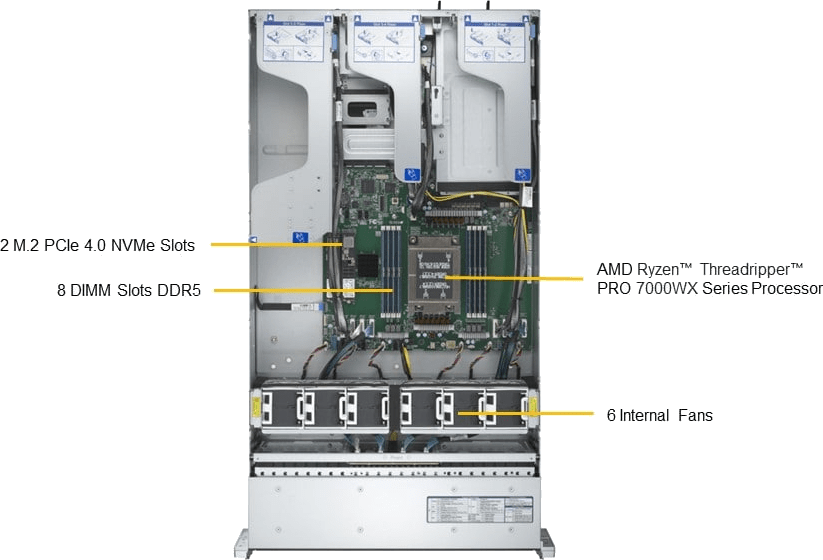

Single Socket sTR5 (LGA-4844)
AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors
AMD Ryzen™ Threadripper™ 9000/7000 Series Processors
Supports up to 350W TDP CPUs
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Eight NVMe (PCIe 5.0 x8), eight SATA 3.0 Hybrid ports

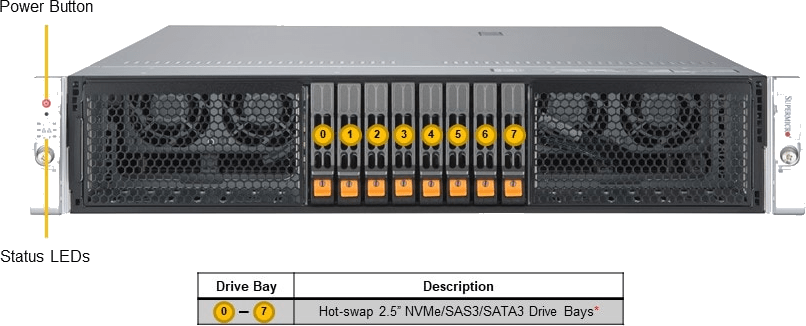

Drive Bays Configuration
Default: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
AIOM
1 RJ45 1 GbE Dedicated BMC LAN port
Form Factor: 2U Rackmount
Weight and Dimensions:
Height: 3.5" (88.9 mm)
Width: 17.2" (437 mm)
Depth: 31.74" (806.2 mm)
Package: 9.96" (H) x 26.46" (W) x 43.31" (D)
Weight
Gross Weight: 75 lbs (34 kg)
Net Weight: 45 lbs (20.5 kg)

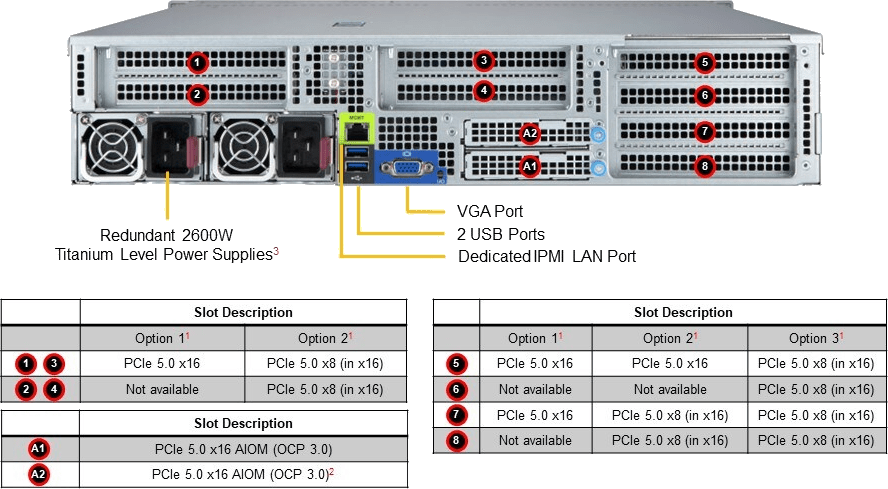

Default
4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A
8 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
LAN
1 RJ45 1GbE with ASPEED AST2600
USB
2 USB 3.0 ports(rear)
Video
1 VGA port
TPM
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Windows® 11 Professional Edition
