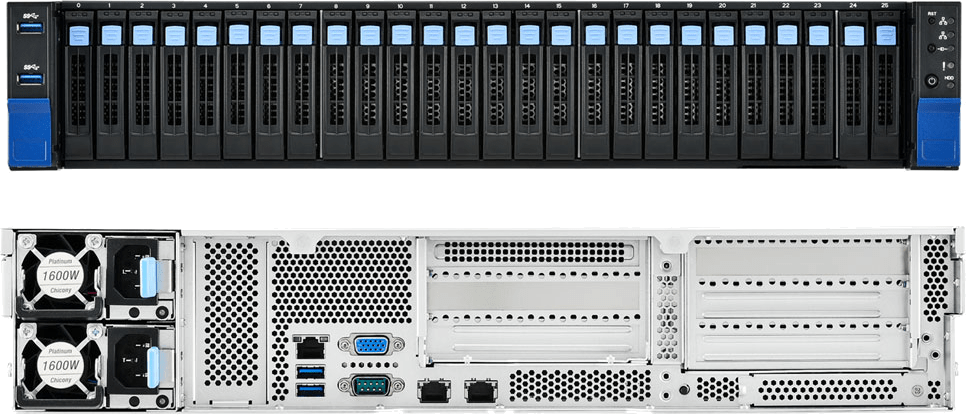

BOLData® Mach 64™ TS70A-B8056

The TS70A-B8056 is a high-performance 2U single-socket storage server optimized for high IOPS. This server features an impressive 26 NVMe U.2 hot-swap trays, making it ideal for applications that demand fast, high-capacity storage.

Key Features

  • Single AMD EPYC 9005 Processor
  • Up to 3TB ECC DDR5, 24 x RDIMM
  • 2U Rackmount, 26 x 2.5" U.2 NVMe drive bays

Configured price $5,382.00

Customize
Request a Quote
EPYC 5th Generation

The Leading CPU for AI

AMD EPYCâ„¢ 9005 processors provide end-to-end AI performance.

Maximizing Per-Server Performance

AMD EPYC™ 9005 can match integer performance of legacy hardware with up to 86% fewer racks2, dramatically reducing physical footprint, power consumption, and the number of software licenses needed - freeing up space for new or expanded AI workloads.

Leadership AI Inference Performance

Many AI workloads—language models with 13 billion parameters and below, image and fraud analysis, or recommendation systems run efficiently on CPU-only servers that feature AMD EPYC™ 9005 CPUs. Servers running two 5th Gen AMD EPYC 9965 CPUs offer up to 2x inference throughput when compared to previous generation offerings.

Maximizing GPU Acceleration

The AMD EPYC™ 9005 family includes options that are optimized to be host-CPUs for GPU-enabled systems to help increase performance on select AI workloads and improve the ROI of each GPU server. For example, a high frequency AMD EPYC 9575F processor powered server with 8x GPUs delivers up to 20% greater system performance than a server with Intel Xeon 8592+ processors as the host CPU with the same 8x GPUs running Llama3.1-70B.

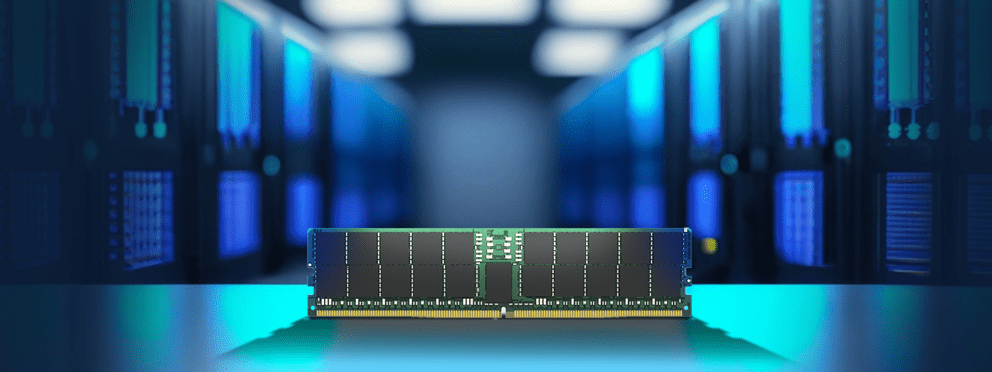

DDR 5

DDR5—Packing Power and Performance into a New Generation

DDR 5
Increased Banks and Burst Length

DDR5 doubles the banks from 16 to 32. This allows for more pages to be open at a time, increasing efficiency. Also doubled is the minimum burst length to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.

Improved Refreshes

DDR5 adds a new command called SAME-BANK Refresh, which allows a refresh of just one bank per bank group, versus all banks. When compared to DDR4, this command allows DDR5 to further improve on performance and efficiency.

Decision Feedback Equalization

DDR5 utilizes Decision Feedback Equalization (DFE) to provide stable, reliable signal integrity on the module, required for high bandwidth.

Upgrade to Windows Server 2025

Protect, adapt, and innovate with Windows Server
Protect with multilayered security

Help secure data and business-critical applications. Get modernized identity management and new safeguards against brute-force and lateral attacks.

Achieve cloud agility anywhere

Bridge on-premises and cloud-based servers and get the power of Azure delivered to your hybrid cloud environment with Azure Arc.

Optimize for future-ready infrastructure

Light up new possibilities with improved scalability, larger virtual machines, and GPU partitioning across VMs built to support AI workloads.

Processor Processor:

Socket (SP5)
Single AMD EPYC™ 9005 Series Processor / AMD EPYC™ 9004 Series Processor
Supports up to 400W cTDP CPUs

Memory Memory:

Slot Count: 24 DIMM slots/12 Channels
 RDIMM / RDIMM-3DS DDR5 5200 MHz (2DPC)
Up to 6,144GB RDIMM/3DS RDIMM DDR5 5200 memory

Controllers Controllers:

NVMe:
2 x P2305-4E storage mezz. for 8 NVMe ports
9 x SFF-TA-1016 (MCIO 8x) for 18 front NVMe

Storage Storage:

Drive Bays Configuration
Default: Total 26 bays
26 NVMe U.2 hot swap, tool less drive

M.2
2 x 22110/2280 (by PCIe Gen 4 interface)

Connectivity Connectivity:

2 10GbE ports (Intel X710-AT2)
1 PCIe Gen.5 x16 OCP 3.0 mezzanine slot
1 RJ45 GbE Dedicated IPMI LAN port(s)

Chassis Chassis:

Form Factor: 2U Rackmount

Power: 2x 1600W Redundant (1 + 1) 80 plus Titanium power supplies

Weight and Dimensions:
Height: 3.42" (87 mm)
Width: 17.26" (438.5 mm)
Depth: 27.56" (700 mm)

Expansion Slots Expansion Slots:

Default
1 PCIe Gen 5 x8 slot
1 PCIe Gen.5 x16 OCP 3.0 mezzanine slot
Riser Cards
1 M7136T70-R24-2F
1 M7136T70-L28-1F

Input/Output Input/Output:

LAN
2 10GbE ports
1 GbE dedicated for IPMI
USB
1 USB3.2 Gen.1 conn. (Type-A)
1 USB3.2 Gen.1 header
2 USB3.2 Gen.1 ports (front)
2 USB3.2 Gen.1 ports (rear)
SERIAL
1 DB-9 COM port
Video
1 VGA port
TPM
1 TPM Onboard (optional)

Management and Security Management and Security:

LAN
1 RJ45 1 GbE Dedicated BMC LAN port

Hardware
 IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
 AST2600 iKVM Feature: 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

Operating System Operating System:

Microsoft Windows® Server 2025/2022
Red Hat Enterprise Linux 9.x
