BOLDATA® Xtreme™ R15-20G6 (SYS-R15-20G6)
BOLData® Xtreme™ R15-20G6
The XA R15-20G6 Series is designed to provide a cost-effective, flexible architecture for large-scale data center deployments. Convenient serviceability with hot-swap drive trays and redundant power ensure rapid deployment and more efficient maintenance.
Key Features
- Dual Xeon 6700/6500 Series Processors
- Up to 8TB ECC DDR5, 32 x RDIMM

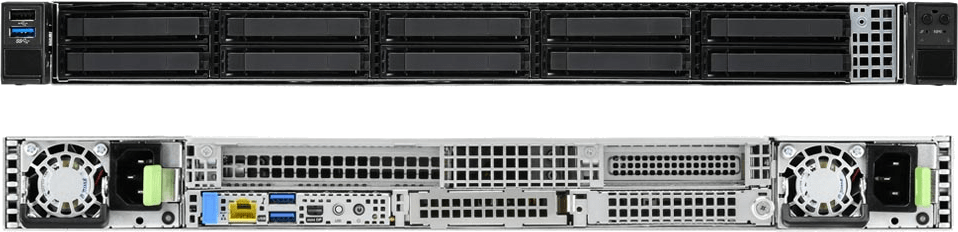

- 1U Rackmount, 10 x 2.5" drive bays
Configured price $8,085.00
Intel® Xeon® Processors
Workload-Optimized Performance and Power Efficiency Gains
Get more compute and faster memory at the same power envelope as our previous generation, plus outsized performance and TCO in AI, HPC, database, networking, and storage.
Intel Xeon processors are optimized to deliver new levels of performance across the greatest range of workloads, while offering improved efficiency and lower power consumption.
Reduce Costs With Improved Performance Per Dollar In The Cloud With Intel Xeon Processors
With their superior performance for data-intensive operations, advanced memory capabilities, and integrated security features, Intel Xeon processors provide a robust platform for enterprises to navigate the complexities of the modern cloud environment.
Optimize Your Data Center With Intel Xeon Processors For TCO Savings
Consolidate workloads to fewer servers and repurpose space and power for AI-ready servers at a lower total cost without compromising performance. Make the best use of your space, power, and budget.
Discover How To Best Refresh And Scale Your Data Center
Intel® Xeon® Processor Advisor Suite can help determine the best solutions for your workload whether it's refreshing existing infrastructure or building a new data center. Get instant recommendations and optimize based on TCO, sustainability and power.
DDR5—Packing Power and Performance into a New Generation
Increased Banks and Burst Length
DDR5 doubles the banks from 16 to 32. This allows for more pages to be open at a time, increasing efficiency. Also doubled is the minimum burst length to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.
Improved Refreshes
DDR5 adds a new command called SAME-BANK Refresh, which allows a refresh of just one bank per bank group, versus all banks. When compared to DDR4, this command allows DDR5 to further improve on performance and efficiency.
Decision Feedback Equalization
DDR5 utilizes Decision Feedback Equalization (DFE) to provide stable, reliable signal integrity on the module, required for high bandwidth.
Upgrade to Windows Server 2025
Protect, adapt, and innovate with Windows Server
Protect with multilayered security
Help secure data and business-critical applications. Get modernized identity management and new safeguards against brute-force and lateral attacks.
Achieve cloud agility anywhere
Bridge on-premises and cloud-based servers and get the power of Azure delivered to your hybrid cloud environment with Azure Arc.
Optimize for future-ready infrastructure
Light up new possibilities with improved scalability, larger virtual machines, and GPU partitioning across VMs built to support AI workloads.

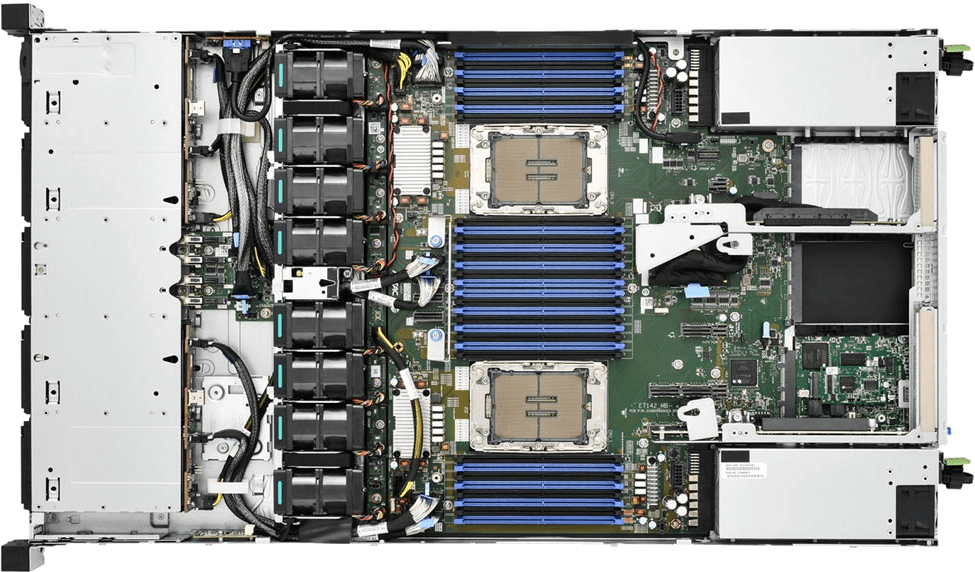

Dual Socket (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Supports up to 250W TDP CPUs (Air Cooled)
Slot Count: 32 DIMM slots/8 Channels
RDIMM / RDIMM-3DS DDR5 6400 MHz (1DPC) / 5200MHz (2DPC) / MRDIMM 8000 (1DPC) -P Core only
Up to 8192GB RDIMM *Follow latest Intel DDR5 Memory POR
SATA: SATA (6Gbps)
NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Drive Bays Configuration
Default: Total 10 bays
10 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
(5) SFF-TA-1016 (MCIO 8x) for (10) front NVMe
(*NVMe/SAS support may require additional storage controller and/or cables)
M.2
(2) 22110/2280 (by PCIe Gen 4 interface)
2 OCP 3.0 Slots
1 RJ45 GbE Dedicated IPMI LAN port(s)
Form Factor: 1U Rackmount
Power: 2x 1300W Redundant (1 + 1) 80 plus Titanium Level power supplies
Weight and Dimensions:
Height: 1.69" (43 mm)
Width: 17.26" (438.5 mm)
Depth: 30.31" (770 mm)
Gross Weight: 59.52 lbs (27 kg)
Net Weight: 55.12 lbs (25 kg)
Default
(1) PCIe Gen 5 x16 slots (HH/HL)
(1) PCIe Gen 5 x16 slots (FH/HL)
(2) PCIe Gen.5 x16 OCP 3.0 mezzanine slots
(1) DC-SCM 2.0 slot
LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
(1) USB3.0 port
(1) USB UART (on DCSCM)
Video
1 VGA port
TPM
TM-TPM2-MS-I-9672
LAN
1 RJ45 1 GbE Dedicated BMC LAN port
Hardware
TM-TPM2-MS-I-9672 (optional)
Microsoft Windows® Server 2025/2022
Red Hat Enterprise Linux 9.x
